ReidBar™ TX Coupler

RRP $0.00
    • Description
    • Features
    • Documents

    The ReidBar™ TX coupler connection is an advanced 2-part mechanical splice system, meticulously assembled in Reid’s ISO 9001:2015 certified facility to ensure the highest standards of quality and performance. The system is engineered with precision, featuring a female coupler (Part A) and a male coupler (Part B), each meticulously threaded and securely tightened onto ReidBar™ using a carefully calibrated torque load. This process ensures a consistent, reliable fit that enhances structural integrity.

    The ReidBar™ TX coupler connection is an advanced solution, specifically designed for projects demanding high-performance mechanical splicing while maintaining reinforcement continuity. Ideal for use in heavily reinforced or congested concrete structures, it delivers exceptional durability, strength, and ductility, making it a trusted choice for a wide range of critical applications. Whether in infrastructure, high-rise construction, or complex architectural designs, the TX splice ensures superior performance and long-term durability.

    Key Features
    • 2-Part Mechanical Splice System Comprises a female coupler (Part A) and male coupler (Part B) for secure mechanical splicing.
    • ISO 9001:2015 Certified Manufacturing Assembled in Reid’s certified facility, ensuring consistent quality control.
    • Torque-Calibrated Assembly Threaded and tightened with calibrated torque for precise, reliable connections.
    • ReidBar™ Compatibility Designed specifically for use with ReidBar™, enhancing structural continuity.
    • Mild Course Thread Design Reduces the risk of crossed threads and eliminates the need for on-site threading.
    • Built-In Visual Indicator Confirms correct thread engagement at a glance.
    • Elimination of Sharp Thread Ends Engineered to remove sharp bar ends post-threading, enhancing site safety.
    • Standards-Compliant Design Tested and compliant with AS 3600 and AS 5100.5 for reinforced concrete structures.
    Key Advantages
    • High Structural Performance Ensures strong, durable, and ductile connections ideal for demanding applications.
    • Improved Jobsite Safety Safer handling and reduced injury risk thanks to the elimination of sharp threads.
    • Visual Compliance Verification Reduces inspection time and ensures installation integrity with visual indicators.
    • Fast and Simple Installation Can be installed by semi-skilled workers, reducing labour demands and training requirements.
    • Versatile Application Ideal for congested or high-reinforcement zones in infrastructure and high-rise projects.
    • Reliable Connection in All Orientations Suitable for both horizontal and vertical splices without performance loss.
    • Minimised Rework Precision threading and torque calibration reduce errors and the need for rework.
    • Trusted Long-Term Durability Designed for performance longevity in critical and complex construction environments.
    File Type File Description

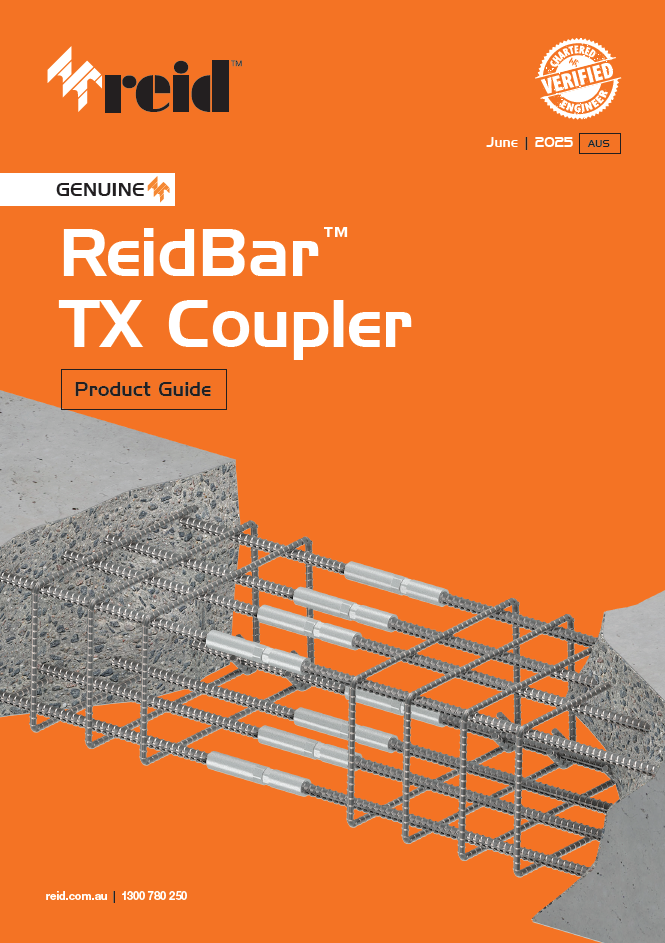

    ReidBar TX Coupler Product Guide Product GuidesReidBar TX Coupler Product Guide

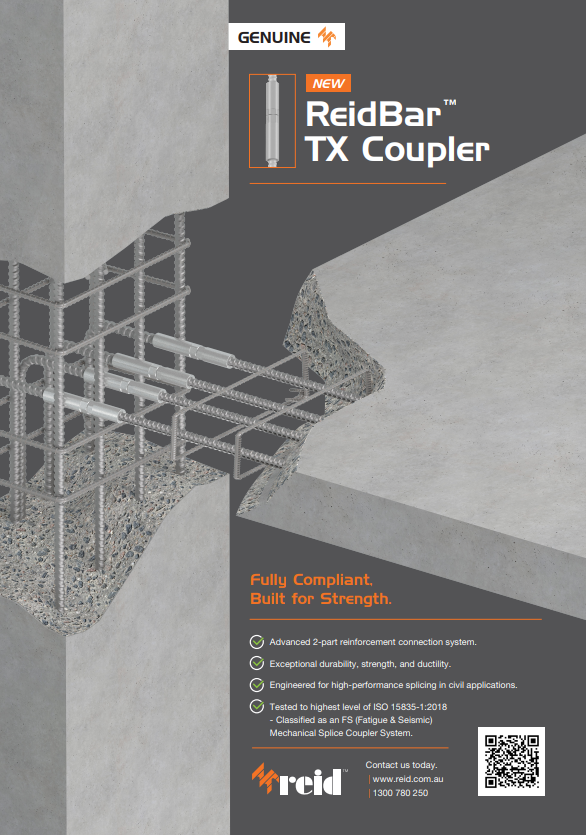

    Reid_ReidBar TX Coupler_Stakeholder Flyers BrochuresReid_ReidBar TX Coupler_Stakeholder Flyers

    ReidBar™ TX Coupler Female

    ReidBar™ TX Coupler Female:

    Part Number Product Name Finish/Material Size
    RB12CSF 12mm ReidBar™ TX Coupler (Female) Black Steel 12mm
    RB12CSFG 12mm ReidBar™ TX Coupler (Female) Galvinised Steel 12mm
    RBA16CSF 16mm ReidBar™ TX Coupler (Female) Black Steel 16mm
    RBA16CSFG 16mm ReidBar™ TX Coupler (Female) Galvinised Steel 16mm
    RBA20CSF 20mm ReidBar™ TX Coupler (Female) Black Steel 20mm
    RBA20CSFG 20mm ReidBar™ TX Coupler (Female) Galvinised Steel 20mm
    RB25CSF 25mm ReidBar™ TX Coupler (Female) Black Steel 25mm
    RB25CSFG 25mm ReidBar™ TX Coupler (Female) Galvinised Steel 25mm
    RB32CSF 32mm ReidBar™ TX Coupler (Female) Black Steel 32mm
    RB32CSFG 32mm ReidBar™ TX Coupler (Female) Galvinised Steel 32mm
    ReidBar™ TX Coupler Male

    ReidBar™ TX Coupler Male:

    Part Number Product Name Finish/Material Size
    RB12CSM 12mm ReidBar™ TX Coupler (Male) Black Steel 12mm
    RB12CSMG 12mm ReidBar™ TX Coupler (Male) Galvinised Steel 12mm
    RBA16CSM 16mm ReidBar™ TX Coupler (Male) Black Steel 16mm
    RBA16CSMG 16mm ReidBar™ TX Coupler (Male) Galvinised Steel 16mm
    RBA20CSM 20mm ReidBar™ TX Coupler (Male) Black Steel 20mm
    RBA20CSMG 20mm ReidBar™ TX Coupler (Male) Galvinised Steel 20mm
    RB25CSM 25mm ReidBar™ TX Coupler (Male) Black Steel 25mm
    RB25CSMG 25mm ReidBar™ TX Coupler (Male) Galvinised Steel 25mm
    RB32CSM 32mm ReidBar™ TX Coupler (Male) Black Steel 32mm
    RB32CSMG 32mm ReidBar™ TX Coupler (Male) Galvinised Steel 32mm
    ReidBar™ TX Coupler Nailing Plate

    ReidBar™ TX Coupler Nailing Plate:

    Part Number Product Name Finish/Material Size
    NP12RBTX 12mm ReidBar™ TX Coupler Nail Plate Plastics 12mm
    NP16RBTX 16mm ReidBar™ TX Coupler Nail Plate Plastics 16mm
    NP20RBTX 20mm ReidBar™ TX Coupler Nail Plate Plastics 20mm
    NP25RBTX 25mm ReidBar™ TX Coupler Nail Plate Plastics 25mm
    NP32RBTX 32mm ReidBar™ TX Coupler Nail Plate Plastics 32mm
