ReidBar™ ReidBox™ MX Rebate Connection System

RRP $0.00
    • Description
    • Features
    • Documents

    Tailor your build with Genuine ReidBar™ connections and a 30mm rebate using ReidBox™ MX. Easily set up on-site with pre-assembled units, securing them to formwork and reinforcing bar effortlessly.

    ReidBox™ MX provides an economical, sacrificial rebate solution using Genuine ReidBar™ fittings for in-situ and precast/tilt-up construction, including floor to wall connections. Available in 3 x depth sizes, to suit a variety of slab design thicknesses, The ReidBox™ MX system comprises of a 1.2m long galvanised steel rebate forming case with removable lid, that seals the ReidBox™ MX Connection system against the formwork.

    The dimpled surface ensures a strong concrete bond, while the streamlined design facilitates easy stripping access. Genuine ReidBar™ fittings are affixed to the ReidBox™ MX with nailing plates, all designed for single-use Application. The pre-assembled and fully sealed system.

    ReidBox™ MX is an Australian made, fully sealed & pre-assembled rebate reinforcement continuity system. Designed to provide the ultimate solution in concrete reinforcement connections with speed and precision.

    Features:
    • Genuine ReidBar™ Connection System: Utilises a 'bar-break' engineered connection system for enhanced structural integrity.
    • Customisable: Comes with preassembled units that are customisable to fit specific project needs, ensuring quick setup.
    • Continuous 30mm Rebate Formation: Forms a continuous 30mm rebate in concrete, providing a smooth surface and reliable performance.
    • Pre-assembled and Sealed: Fully pre-assembled and sealed to prevent concrete ingress, reducing the risk of damage.
    • Fast and Secure Installation: Allows for fast and secure installation by nailing or tying to formwork, saving time and ensuring stability.

    Benefits:
    • Enhanced Structural Integrity: Ensures the integrity of concrete reinforcement connections, reducing the risk of concrete cracking and structural failure.
    • Customisation for Project Needs: Provides flexibility to meet specific project requirements, reducing the need for on-site modifications and adjustments.
    • Smooth Surface Finish: Creates a smooth surface finish with the continuous 30mm rebate formation, enhancing the aesthetic appeal of the concrete structure.
    • Reduced Risk of Damage: Fully pre-assembled and sealed design prevents concrete ingress, reducing the risk of damage and ensuring long-term durability.
    • Time and Cost Savings: Allows for fast and secure installation, saving time on-site and reducing labour costs associated with installation processes.

    Overall, the ReidBox™ MX Rebate Solution offers a combination of structural integrity, customisation, ease of installation, and long-term durability, making it an ideal choice for a wide range of construction projects.
    File Type File Description

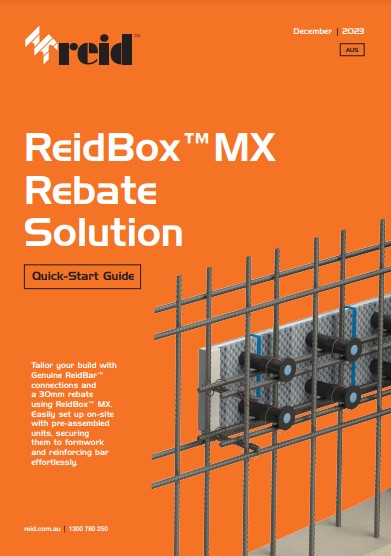

    ReidBar™ ReidBox™ MX Rebate System Product Guide Product Guides

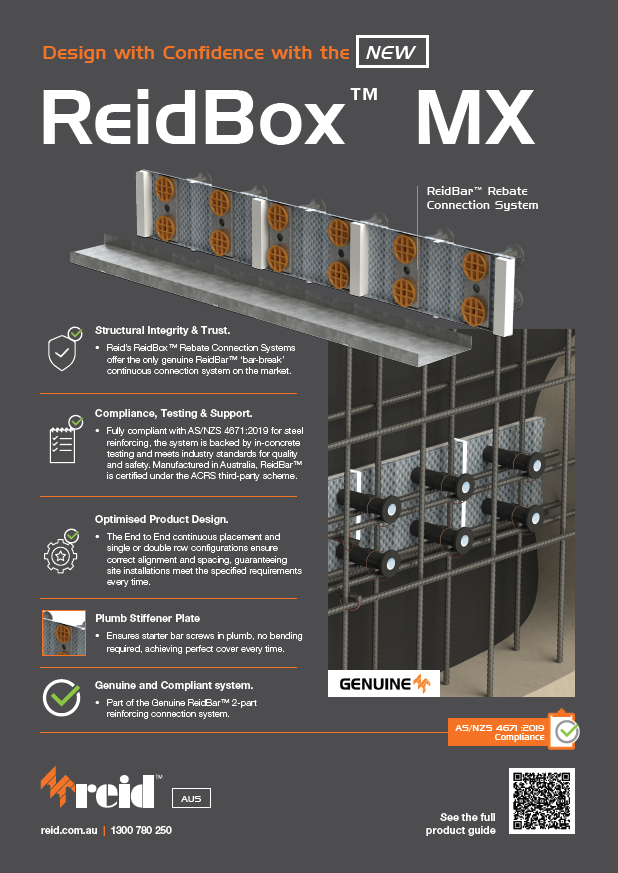

    Reid ReidBox MX Flyer_Structural Engineers _Specifiers BrochuresGenuine and Compliant system. Part of the Genuine ReidBar™ 2-part reinforcing connection system. Fully compliant with AS/NZS 4671:2019 for steel reinforcing, the system is backed by in-concrete testing and meets industry standards for quality and safet

    ReidBar™ ReidBox™ MX Single Row

    ReidBar™ ReidBox™ MX Single Row:

    Product Code Depth Fitting Dia. Spacing Single/Double
    RBMX12016T200S 120 16 200 S
    RBMX12016T300S 120 16 300 S
    RBMX12020T200S 120 20 200 S
    RBMX12020T300S 120 20 300 S
    RBMX12025T200S 120 25 200 S
    RBMX12025T300S 120 25 300 S
    RBMX17016T200S 170 16 200 S
    RBMX17016T300S 170 16 300 S
    RBMX17020T200S 170 20 200 S
    RBMX17020T300S 170 20 300 S
    RBMX17025T200S 170 20 200 S
    RBMX17025T300S 170 20 300 S
    ReidBar™ ReidBox™ MX Double Row

    ReidBar™ ReidBox™ MX Double Row:

    Product Code Depth Fitting Dia. Spacing Single/Double
    RBMX17012T150D 170 12 150 D
    RBMX17012T200D 170 12 200 D
    RBMX17016T200D 170 16 200 D
    RBMX17016T300D 170 16 300 D
    RBMX17020T200D 170 20 200 D
    RBMX17020T300D 170 20 300 D
    RBMX17025T200D 170 25 200 D
    RBMX17025T300D 170 25 300 D
    RBMX23016T200D 230 16 200 D
    RBMX23016T300D 230 16 300 D
    RBMX23020T200D 230 20 200 D
    RBMX23020T300D 230 20 300 D
    RBMX23025T200D 230 25 200 D
    RBMX23025T300D 230 25 300 D
