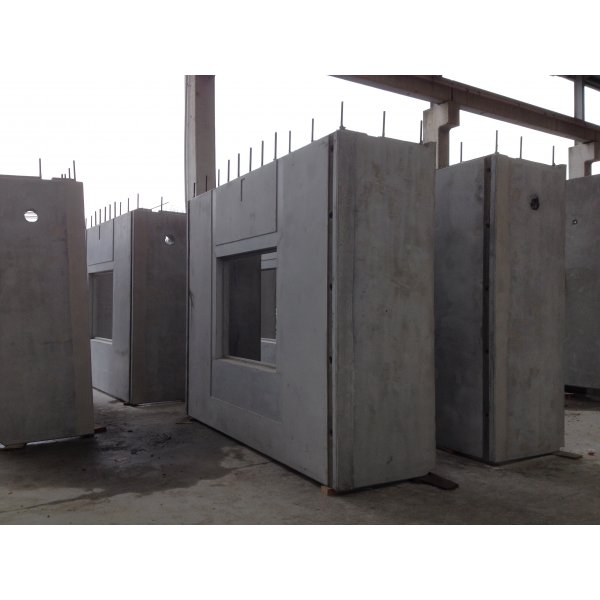

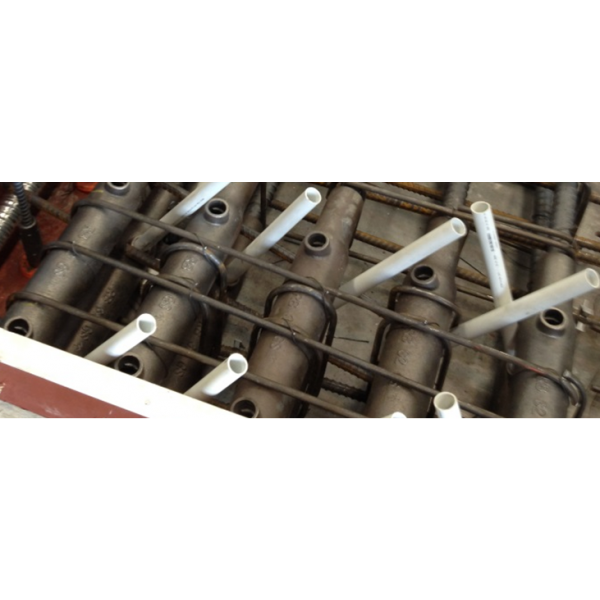

    The ReidBar Grout Sleeve System provides a full strength splicing solution for reinforcing bars allowing reinforcing continuity between load-bearing precast concrete elements.

    The ReidBar Grout Sleeve System is engineered for the task, and unlike spiral ducts & grouted tubes, require no modification, reducing production and installation costs, and eliminating error. The system is supported by technical assistance at every stage, face-face-training, procedures and checklists that take the guesswork out of construction.

    Backed by thirdparty accredited quality, the ReidBar Grout Sleeve system can be depended on, whether you’re manufacturing precast concrete panels or installing on-site. Being independently certified, they enable designers to create efficient construction joints between precast concrete elements with confidence.


    Features & Benefits:

    • Using Grout Sleeves eliminates the need for any starter bars protruding from precast elements, that are liable to be damaged or bent during transportation, and provides ease of handling on site.
    • Develops full ultimate strength of the bar in ten bar diameters rather than forty bar diameters with duct or lapped slices.
    • Can provide full cantilever moment connections at the base and top of precast columns and walls.
    • Used in critical stress zones.
    • Eliminates cover issues with lapped bars.
    • Removes the need for in-fill pours between precast elements.
    • Speeds up construction by reducing the requirement for poured insitu joints.
    • Grout sleeves are available in all bar sizes 12, 16, 20, 25 & 32.



    File Type File Description
    Reid ReidBar Grout Sleeve Product Guide_AU Product GuidesReid ReidBar Grout Sleeve Product Guide_AU
    Reid_Genuine ReidBar Connection Systems_Important Information Compliance DocumentsAre you aware of the product substitution chain of responsibility and risk? There is NOT a Genuine ReidBar™ system equivalent, no matter what they say…
    Genuine ReidBar & GFG Product Guide Product GuidesGenuine ReidBar & GFG Product Guide
    ReidBar™ Design Guide - Australia Design GuidesGuide to designing with ReidBar to Australian standard and conditions.
    File Type File Description
    ramsetreid Precast Solutions Product Guide 2019 Product GuidesOverview of products available from Reid for the Precast market.
    M_ReidBar Grout Sleeve AUS DWG Digital DownloadsM_ReidBar Grout Sleeve AUS DWG
    M_ReidBar Grout Sleeve AUS RFA Digital DownloadsM_ReidBar Grout Sleeve AUS RFA

    Reid™ Grout Sleeve

    Reid™ Grout Sleeve:

    Part No.Suits
    ReidBar™
    Embedment
    Depth (mm)
    (A)
    Bar Thread
    Depth (mm) (B)
    Grout Sleeve I.D (mm) (C)Grout Sleeve
    O.D (mm)
    (D)
    Grout Port
    Dia. (mm)
    (E)
    Overall Length
    (mm) (F)
    Nom Grout
    Vol (ml)
    RB12GSRB12130 ± 204028-4046-5821200200
    RBA16GSRB16170 ± 2044.5325021240200
    RBA20GSRB20204 ± 2060406021290350
    RB25GSRB25254 ± 2080487021360550
    RB32GSRB32300 ± 20109557526445900

    Reid™ has been a trusted construction industry supplier for over 100 years.
