Fast Clip Bar Chairs

RRP $0.00
    • Description
    • Features
    • Documents

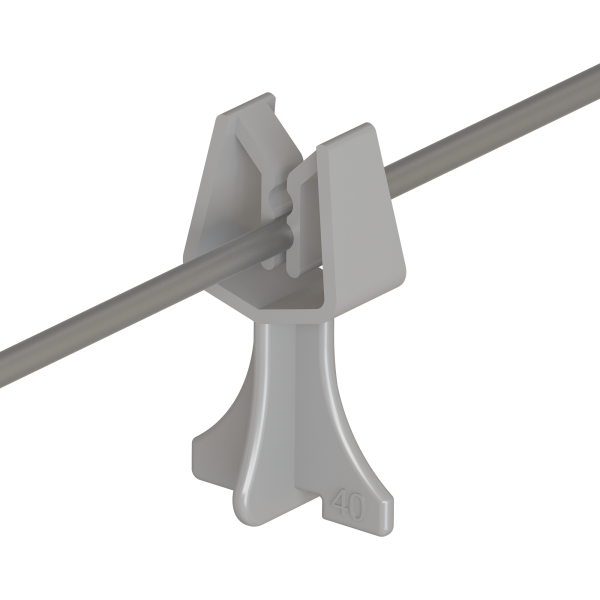

    Fast Clip-on Bar Chairs (FCB’s) are designed to make steel-fixing and traceability easier, with each chair identified by cover. FCBs are suitable for bar sizes from 4mm up to 20mm in diameter.

    Quality Control
    The use of random batch load testing conducted onsite during manufacture, when combined with Compliance testing in Australian NATA certified laboratories, ensures compliance and quality control

    Applications:

    • Precast and Tilt-Up.
    • Suspended decks.
    • Beams, walls and panels

    Complies with the requirements of AS/NZS 2425:2015.






    • Available in 20, 25, 30, 35, 40, 50, 60, 65 and 75mm cover.
    • Fast clip-on design.
    • Strong & stable design.
    • Australian Made. The Reid Contruction Systems® manufacturing facility at Chirnside Park (Victoria) is ISO 9001 certified.
    • Complies with AS/NZS 2425:2015.
    File Type File Description
    Reid Plastic Chairs & Spacers Product Guide 2022 Product CataloguesReid Plastic Chairs & Spacers Product Guide 2022
    RCS_Civil Market Offer Product Guide Product GuidesRCS_Civil Market Offer Product Guide

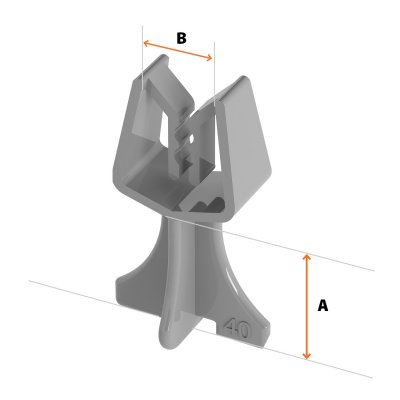

    Type B Bar Chair

    Type B Bar Chair:

    Part #DescriptionAS2425 Load Rating
    (kg)
    Pack qty
    (Each)
    Pallet qty
    (pack)
    Pallet qty
    (Each)
    Pallet HeightPallet M3A (mm)B
    (mm)
    Max bar size
    FCB20Fast Clip Bar Chair 20mm120100505,0004000.5820Up to 20mm
    FCB25Fast Clip Bar Chair 25mm120100505,0004000.5825Up to 20mm
    FCB30Fast Clip Bar Chair 30mm120100505,0004000.5830Up to 20mm
    FCB35Fast Clip Bar Chair 35mm120100505,0004000.5835Up to 20mm
    FCB40Fast Clip Bar Chair 40mm120100505,0004000.5840Up to 20mm
    FCB50Fast Clip Bar Chair 50mm120100505,0004000.5850Up to 20mm
    FCB60Fast Clip Bar Chair 60mm120100505,0006000.8660Up to 20mm
    FCB65Fast Clip Bar Chair 65mm120100505,0006000.8665Up to 20mm
    FCB75Fast Clip Bar Chair 75mm120100505,0006000.8675Up to 20mm

    Reid™ has been a trusted construction industry supplier for over 100 years.
