3Dx™ 10t Edge Lifting System

RRP $0.00
    • Description
    • Features
    • Documents
    • Digital Downloads
    • Videos

    3Dx 10t Lifting System provides the precaster with a true next generation lifting solution. We’ve taken our ever popular 3DX85 anchor and increased it’s tensile and shear capacity without increasing it’s footprint.

    Stronger than before:
    Stronger than before...a 10t WLL anchor, with the same footprint of the 3DX85 anchor. Allowing for a high capacity anchor that is also suitable for use in thin panels.

    Faster to full capacity: shorter time frames to achieve full tensile and shear capacities, allowing you save time on your project.

    Anchorsheild™ The first coated edge lift anchor: The coating mitigates delamination caused by galvanic reactions, while at the same time allows for easy visual QA checks

    Features & Benefits:
    • Anchorsheild™, the coating mitigates delamination caused by galvanic reactions, while at the same time allows for easy visual QA checks.
    • Unique design distributes loads in the concrete in three dimensions, maximising capacity while reducing outward bursting loads and potential panel damage.
    • Less reinforcement required due to advanced leg profile.
    • Eliminates concrete spalling in shear to edge and rotational lifts of thin concrete elements.
    • Complies with AS3850.1:2015 (+A1 2019) for the complete system (anchor, clutch and void former).
    • Hot dip galvanised for maximum corrosion protection.
    • Extensively tested and independently verified.
    • System colour code to minimise component selection errors.
    File Type File Description
    Reid_SwiftLift Edgelift Clutches_AS3850 Compliance Doc_ AU Compliance DocumentsReid SwiftLift™ Edge Lift Clutches, from 3t to 10t WLL comply with AS3850.1:2015 (+A1)
    Reid AUS Lifting Systems Compatibility Guideline EducationalReid AUS Lifting Systems Compatibility Guideline. Reid™ SwiftLift™ Lifting Systems comply with S 3850.1:2015 (+A1:2019) Please refer to the relevant Compliance Document for further information regarding these systems
    Reid Lifting Anchors Installation Guide AUS Installation GuidesInstallation process for the Reid Lifting system product range
    Reid_SwiftLift 3DX 10t Edge Lifting System_AS3850_CD_AUS Compliance DocumentsReid_SwiftLift 3DX Edge Lifting System_AS3850_CD_AUS
    RCS_Civil Market Offer Product Guide Product GuidesRCS_Civil Market Offer Product Guide
    Reid_external product bulletin_AU_Quality&Testing_SEPT24 BulletinsReid_external product bulletin_AU_Quality&Testing_SEPT24
    File Type File Description
    Reid 3Dx 10t BIM/DWG Digital DownloadsReid 3Dx 10t BIM/DWG

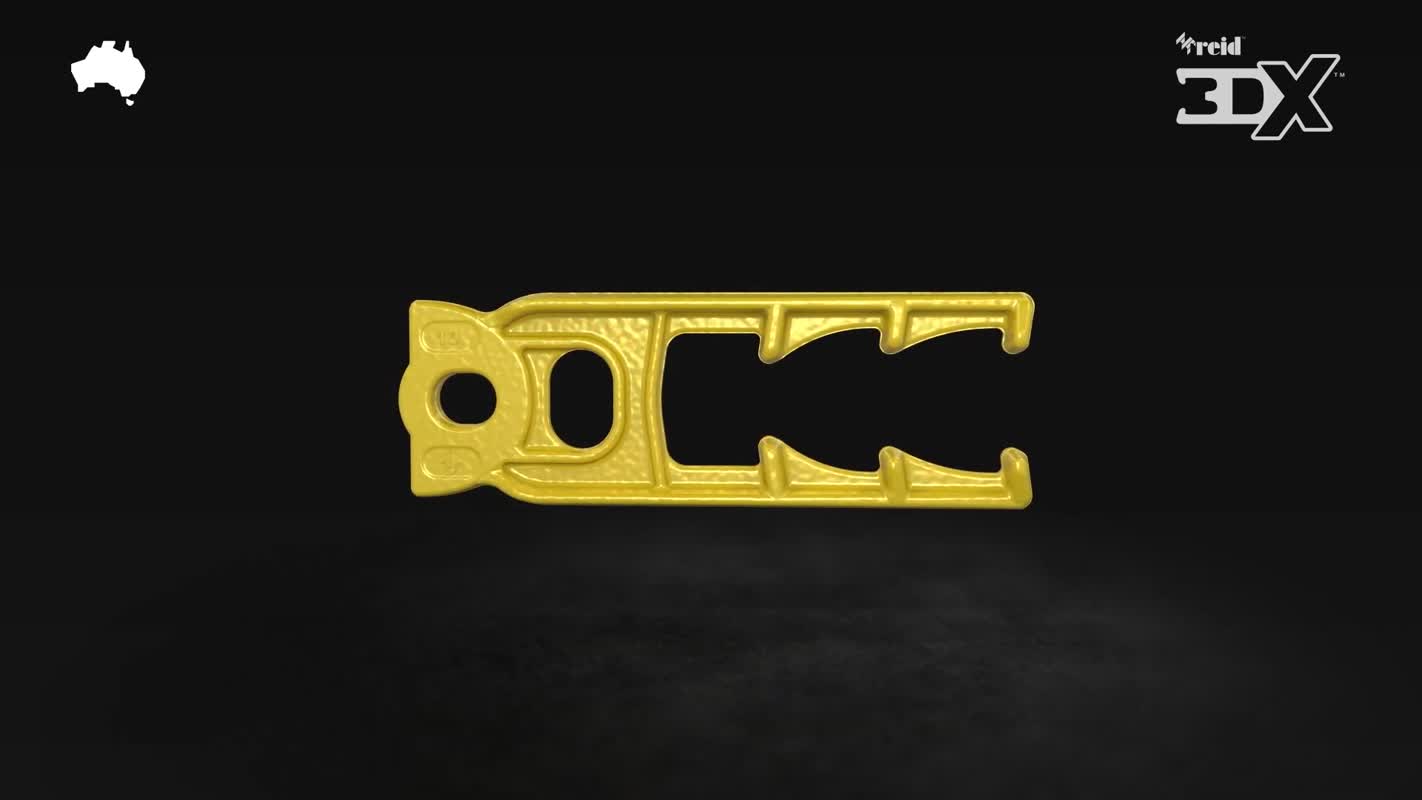

    Reid 3Dx 10t Edge Lift Anchor AU Install (3DX10A)

    Reid™ 3Dx™ 10t Lifting system installation guide; The evolution of Australian Concrete Lifting. Complaint to AS3850:2015 (+A1 2019). Further technical information can be found at reid.com.au Products used in this video are the Reid™ 3DX10A 10t WLL anchor, 3DX85VF void former & 3DX10ALC 10t WLL Articulated Clutch

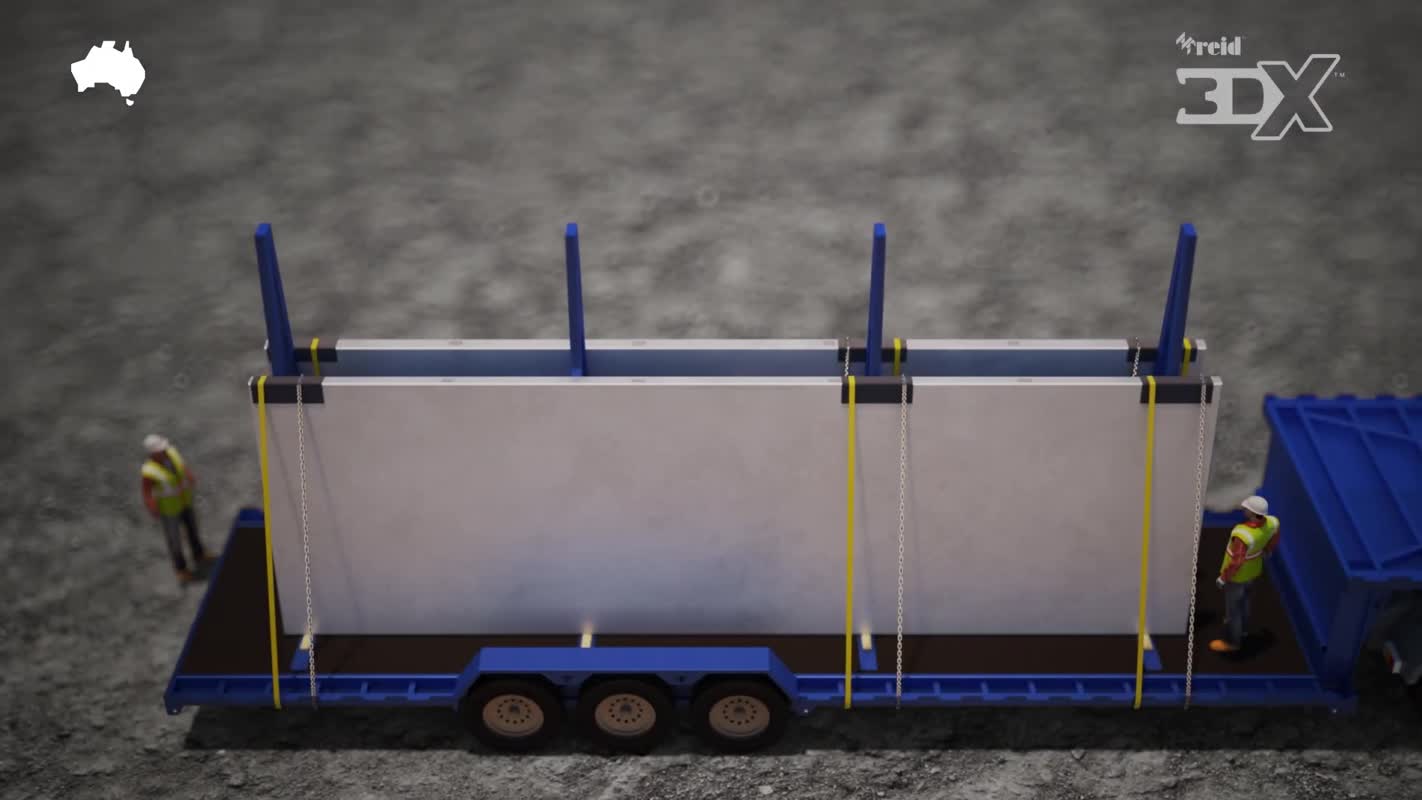

    Reid™ 3Dx™ 10t Edge Lift System Rigging & Lifting Methodology AUS

    Rigging, Lifting & Install Guidance Video featuring the Reid™ 3Dx™ 10t WLL lifting system. Compliant to AS3850:2015 (+A1 2019). Further technical information can be found at reid.com.au Products used in this video are Reid™ 3DX10A 10t WLL anchor & 3DX10ALC 10t WLL Articulated Clutch Note this video is for reference only and lifting certification & methodology as described in site specific documentation shall take precedence.

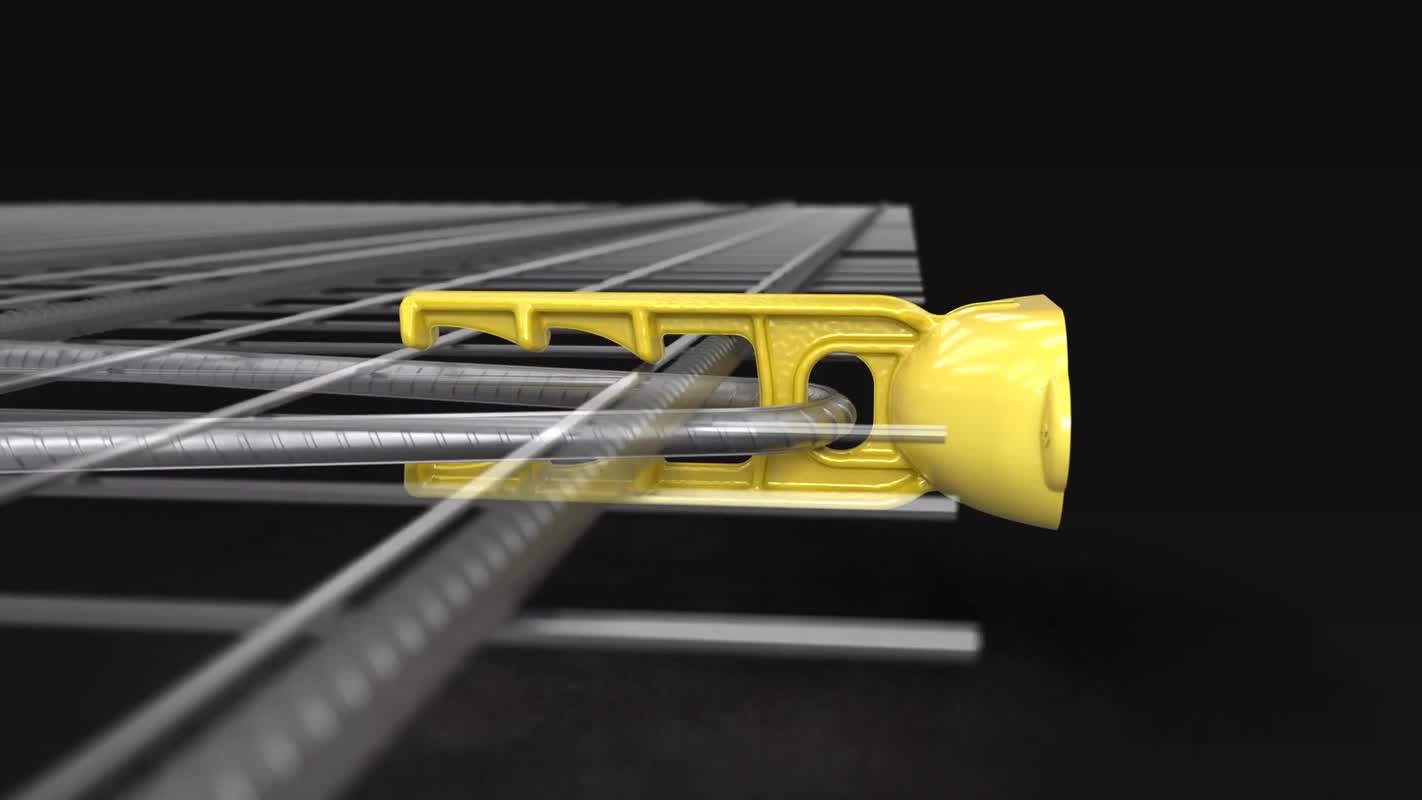

    3Dx™ 10t Edge Lift System

    3Dx 10t Lifting System provides the precaster with a true next generation lifting solution. We’ve taken our ever popular 3DX85 anchor and increased it’s tensile and shear capacity without increasing it’s footprint. Stronger than before: Stronger than before...a 10t WLL anchor, with the same footprint of the 3DX85 anchor. Allowing for a high capacity anchor that is also suitable for use in thin panels. Faster to full capacity: shorter time frames to achieve full tensile and shear capacities, allowing you save time on your project. Anchorsheild™ The first coated edge lift anchor: The coating mitigates delamination caused by galvanic reactions, while at the same time allows for easy visual QA checks

    10t 3Dx Edge lifting System

    10t 3Dx Edge lifting System:

    Part #Description
    3DX10ASwiftLift 3Dx10 Edgelift Anchor - 10t WLL
    3DX10ALCSwiftLift 3Dx10 Lifting Clutch
    3DX85VFSwiftLift 3Dx85 Void Former
    3DX85NPSwiftLift 3Dx85 Void Former Support Plate

    Featured Video

    Reid 3Dx 10t Edge Lift Anchor AU Install (3DX10A)

    Reid™ 3Dx™ 10t Lifting system installation guide; The evolution of Australian Concrete Lifting. Complaint to AS3850:2015 (+A1 2019). Further technical information can be found at reid.com.au Products used in this video are the Reid™ 3DX10A 10t WLL anchor, 3DX85VF void former & 3DX10ALC 10t WLL Articulated Clutch

    View Video
    Reid 3Dx 10t Edge Lift Anchor AU Install (3DX10A)
